Engineering Deterministic
Cyber-Physical Worlds
Resolving the tension between high-speed emulation and instruction-boundary determinism via VirtMCU.
But why do we even need simulators at all?

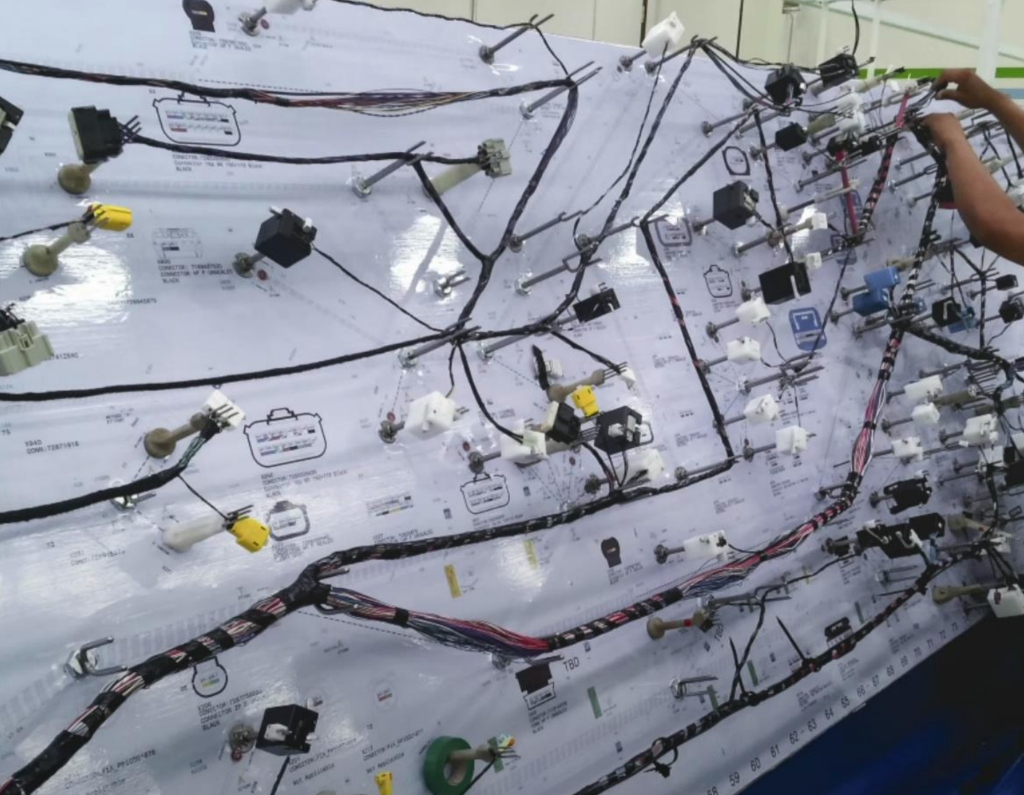

100+ Heterogeneous MCUs
Modern vehicles and plants contain hundreds of processors. Physical boards simply do not fit on a developer's desk.
Dangerous Extremes
Validating physical boundaries (high-speed crashes, short-circuits) is too dangerous or expensive to test on hardware.
No Shims or Mocks
Basic software shims and mocks hide real-world race conditions, interrupt conflicts, and hardware timing issues.
Proprietary Tooling
Multi-vendor sourcing introduces non-interoperable semiconductor compilers, IDEs, and flash utilities.
AI-Driven Development & Fleet Scaling
Exponentially growing fleet volumes and multi-decade lifespans demand simulation-based automated testing to empower modern AI co-pilots and CI pipelines.
Host OS Jitter Causes Chaotic Bifurcation
The Architecture of Invariance
Binary Fidelity
The unmodified production firmware ELF runs natively. No simulation-only #ifdef macros. No mocks.
Global Determinism
Given the same global seed and USDA topology, output is bit-identical across infinite runs. No reliance on rand() or host clocks.
Causal Ordering
Messages are delivered strictly in the order they were sent in virtual time, immune to host network latency.
Contextualizing VirtMCU in the EDA Landscape
| Synopsys Virtualizer/VDK | Arm Fast Models | IEEE 1666 (SystemC) | VirtMCU | |
|---|---|---|---|---|
| Execution Engine | SystemC TLM-2.0 | Proprietary JIT | User-defined | Native Open-Source JIT (TCG) |
| Topology Configuration | Requires ESL tools | Static/Fixed | Hardcoded C++ | Dynamic SSoT Device Tree (FDT) |
| Determinism (Time) | Discrete Event | Virtual time | Discrete Event | Strict PDES (Quantum Barrier) |
| Co-Sim Capabilities | Excellent | Limited (Arm-only) | Native | Built-in (SystemC & Physics SHM) |
The Necessity of Cyber-Physical Integration
Discrete cyber clocks and continuous physical equations drift apart immediately without a strict lockstep bridge.
The Cyber-Only Fallacy
Testing firmware in a software vacuum ignores real-world sensor noise, thermal drift, and continuous feedback loops.
The Solution: True Co-Simulation
VirtMCU acts as a PDES Quantum Barrier, binding unmodified production binaries (QEMU) directly to continuous physical solvers in lockstep.
The Physics-Only Fallacy
Pure physical simulations assume infinite, instantaneous compute. They ignore the brutal reality of hardware limits, pipeline stalls, and interrupt latencies, often forcing redundant logic implementations.
Enforcing Causality via the PDES Quantum Barrier
Conservative Synchronization (Chandy-Misra-Bryant). Evaluate-Update queue (Patel & Grobe).
No speculative execution. No rollback overhead. Absolute causality.
Clock Backbone: Cooperative Slaved Clock Modes
Our native QOM clock plugin (hw/rust/backbone/clock) balances performance and determinism via two slaving modes.
VirtMCU SSOT: From Declaration to Cyber-Physical Execution
Unifying silicon micro-architecture and 3D world topology into a deterministic runtime.
The Tri-Transport Architecture
Segregating the control plane from the data plane to guarantee latency, determinism, and scale.
FMI 3.0 Alignment and SystemC Interoperability
VirtMCU bridges SystemC’s instruction-accurate Discrete Event domain with FMI 3.0 physical simulation. By intercepting register accesses and matching the PDES barrier with time-controlled doStep calls, the cyber and physical axes advance in exact lockstep.
Case Study: Software-Defined Vehicle (SDV) Zonal Architecture
Validating a “data center on wheels”. Modeling complex protocol translations
and precise network timing bounds across legacy and gigabit domains.
Deterministic Logging: Resolving the Heisenberg Effect
Standard logging blocks on host I/O, introducing wall-clock jitter that skews virtual time. VirtMCU writes guest messages instantly to a lock-free ring buffer in RAM with precise virtual timestamps, deferring host disk writes to a background thread to preserve absolute simulation determinism.
Introspection via Dual-Axis Tracing and MCP
Unified telemetry indexed by virtual and physical time, exposing structured semantic state to AI co-pilots.
Dual-Axis Tracing (OpenTelemetry)
All nodes (QEMU, Coordinator, Runners) emit structured traces. Spans are double-indexed by wall_time for performance debugging and vtime_ns for bit-identical, deterministic replay.
Model Context Protocol (MCP)
AI agents interface directly as peer programmers into the simulation fabric:
- Control: Autonomous node provisioning and lifecycle management.
- Introspection: Dynamic disassembly, register reads, and raw memory analysis.
- Interactive: Keystroke injection and PCAP analysis for record & replay debugging.
Join the Journey
Appendix
Supplemental Technical Materials & Deep Dives
The Causality Constraint in Distributed Systems
Routing the Physical Boundary via QOM and MMIO
Structural Determinism: Canonical Sorting and the FIFO Seal
The Deterministic Coordinator as a Central Router
Topology is strictly declared in the World USDA. Direct node-to-node peer communication is
physically banned. If a link isn't declared, packets drop, isolating domains.
From Blueprint to Bootable Assets
Data flows strictly unidirectionally from the declarative schema into compiled artifacts.
Changing a register offset in the SVD automatically updates the firmware, the Rust
emulator plugin, and the QEMU memory map in a single pass.
Bifurcated Architecture: Control and Data Planes
Segregating virtual time synchronization from I/O transactions to eliminate bottlenecks and guarantee bit-identical determinism.
The Bottleneck Problem
Coupling CPU execution with network I/O routing causes chaotic simulation, unpredictable jitter, and non-deterministic race conditions.
Control Plane (Timing)
The Time Advance Thread acts as the master director. It dictates time quanta, ensuring all virtual nodes freeze, wait, and synchronize precisely at strict virtual nanosecond barriers.
Data Plane (Routing)
A mathematically perfect, sans-I/O state machine. Emulated transactions (CAN, Ethernet, SPI) are intercepted, stamped with exact virtual timestamps, and routed through a priority queue for deterministic, canonical tie-breaking.
The Unified Cyber-Physical Organism
High-Speed Binary Fidelity via Dynamic Translation
Zero-timing-overhead injection. Direct execution at near-native speeds.
No Parameter Defined Twice
| CMSIS-SVD (.svd) | World Topology (.usda) |
|---|---|
| Micro-Architecture | Macro-Architecture |
| Register offsets, bitfields, reset values, base addresses | Node connectivity, peripheral instantiation, parent buses, networking links |
| Silicon Vendors (ARM, STMicro, Nordic) | System Integrators / Simulation Engineers |
Rule: USDA must not hardcode addresses if an SVD is available. USDA defines a pointer to the SVD. The orchestration tooling dynamically extracts the addresses.
Treating Hardware as First-Class 3D Assets
The USDA format aligns the cyber-node topology directly with OpenUSD, enabling
seamless integration with 3D physical modeling environments like NVIDIA Omniverse.
Enforcing Structural Isolation and Security
By declaring the exact network graph in the World USDA, VirtMCU mathematically
guarantees isolation boundaries. It proves to regulatory bodies that unintended
cross-zone traffic is structurally impossible in the simulated architecture.
Taming the Scale of Cyber-Physical Systems
Modern architectures—from Software-Defined Vehicles (SDVs) to gigafactories—are overwhelmingly complex, bridging heterogeneous MCUs and volatile network buses (CAN-FD, Ethernet). VirtMCU scales to meet this complexity without sacrificing control.
Deterministic Control Over Chaos
A single global_seed dictates all stochastic noise, network jitter, and PRNGs. Chaos is permitted, but entirely reproducible bit-for-bit.
Fast Iteration & Inspection
Cloud-native, parallel execution generates deterministic PCAP traces, allowing instant Wireshark inspection without requiring physical hardware.
AI as a First-Class Citizen
Deep integration with the Model Context Protocol (MCP) enables LLM-driven agents to ingest semantic state, analyze PCAP telemetry, and debug complex multi-node races autonomously.
Decoupled Cyber-Physical Integration
Eliminating IPC latency through an in-process Physics Gateway and high-speed SHM futex doorbells.
Before & After
The Network Gap
Distributing virtual-time orchestration and physics calculations across separate network processes introduces IPC latency, timeout risks, and non-deterministic side channels.
The Unified Master
The SimulationMaster process consolidates the Time Authority and the Physical Plant into a single, fail-loudly executable—eliminating context-switching overhead.
The SHM Doorbell
Continuous physics engines (e.g., MuJoCo) run externally to protect memory boundaries but synchronize via an ultra-fast Shared Memory (SHM) page and a two-phase Linux futex doorbell, bypassing the network stack entirely.
